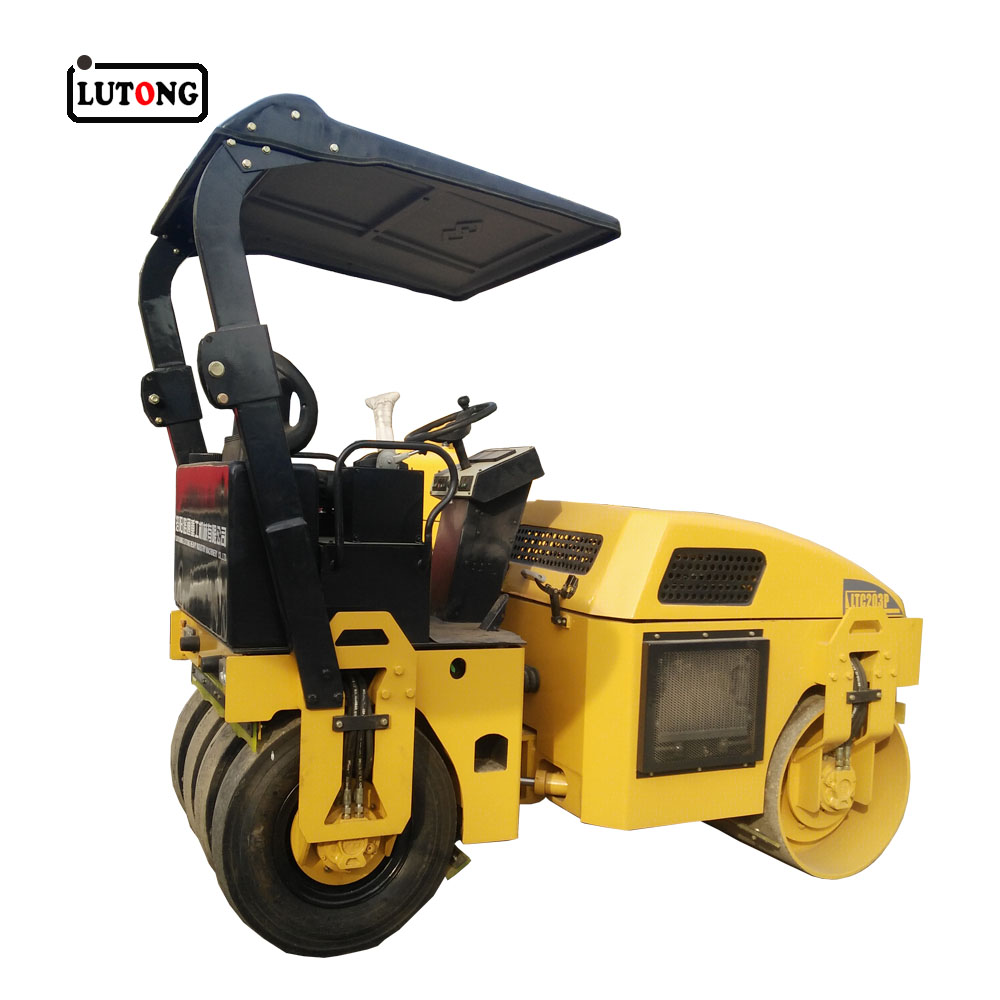

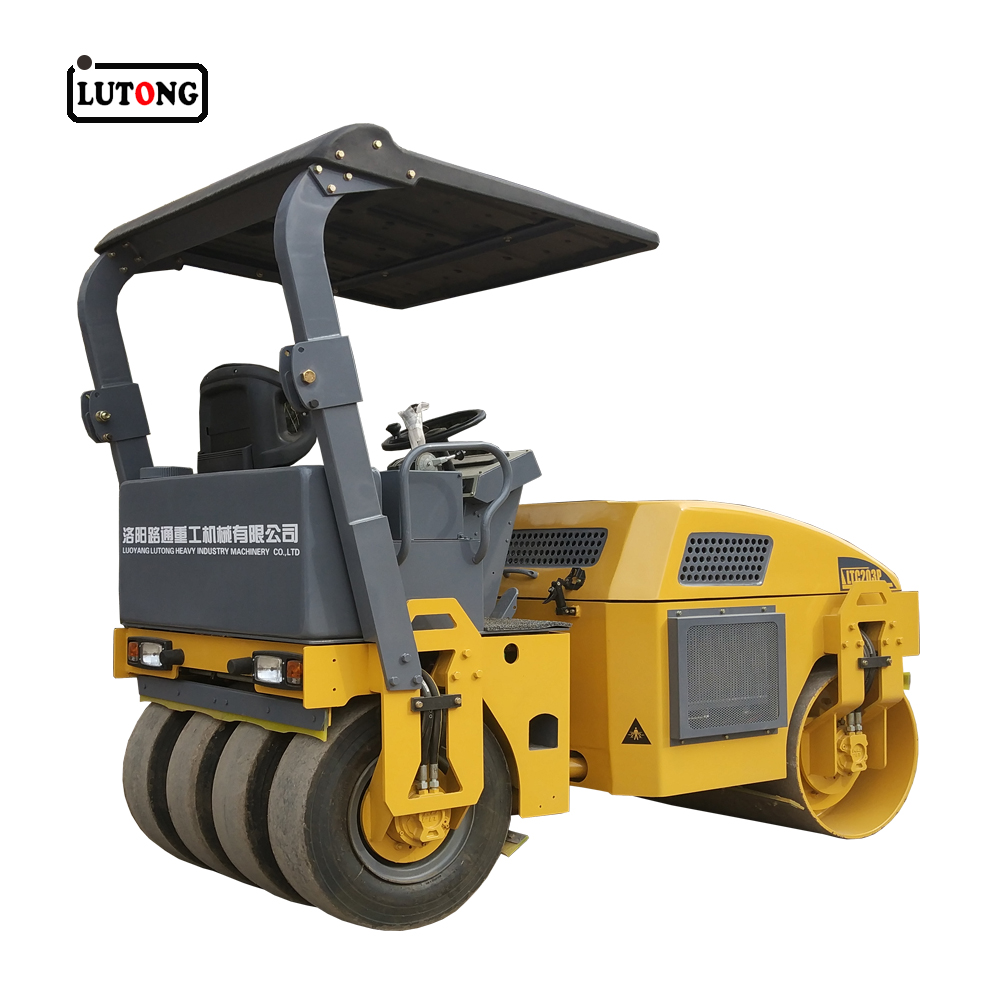

LTC203P 3 Tons Tire Combined Hydraulic Vibratory Road Roller
Main Features
1.LTC203P hydraulic front and rear wheels drive,hydraulic front drum vibration;
2.LTC203P rear wheel adopts combination of four slick tires,and has double functions of steel wheel roller and tire roller,which can effectively improve the rolling quality of asphalt pavement,and improve the climbing ability;
3.LTC203P designed with high-end seats, has greatly enhanced operator comfort,reduce fatigue;
4.LTC203P is optional for front blade,a multi-purpose machine,greatly improving efficiency;
Main Technical Parameters
Model | LTC203P | |
Operating mass | kg | 3000 |
Static linear load | N/cm | 136/180 |
Vibration amplitude | mm | 0.5 |
Centrifugal force | KN | 30 |
Vibration frequency | KZ | 50 |
Travel speed | Km/h | 0-12 |
Grade ability | % | 32 |
Steering angle | ° | ±26 |
Drum diameter | mm | 700 |
Drum width | mm | 1250 |
Wheel base | mm | 2010 |
Diesel model | ZN390B | |
Diesel power | Kw | 26.5 |
Water tank capacity | L | 200 |
Overall dimension | mm | 2760*1400*2580 |
Quantity of rear tire | 4 | |
Specification of rear tire | 7.50-15 |
